Would you like to troubleshoot a deadlock in Azure SQL Database? To do this you probably will be after the deadlock graph. So does this mean that you need to setup your own extended event session? No, it doesn’t.

Already running is a session so you can issue the following query to get the details. (I created a deadlock on purpose here).

WITH CTE AS (
       SELECT CAST(event_data AS XML)  AS [target_data_XML]
   FROM sys.fn_xe_telemetry_blob_target_read_file('dl', null, null, null)
)
SELECT target_data_XML.value('(/event/@timestamp)[1]', 'DateTime2') AS Timestamp,
target_data_XML.query('/event/data[@name=''xml_report'']/value/deadlock') AS deadlock_xml,
target_data_XML.query('/event/data[@name=''database_name'']/value').value('(/value)[1]', 'nvarchar(100)') AS db_name
FROM CTE

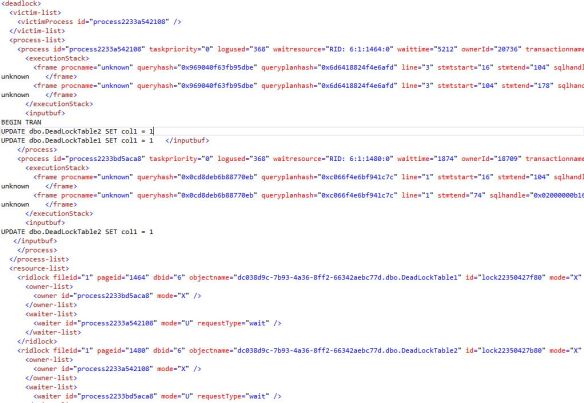

Analyse the XML as you would for on-premises SQL Server – its no different in terms of looking out for the victim and what lock types were waiting etc.
